Détails des produits

À la maison > Produits >
Excavatrice Travel Motor
>
TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404
Toutes Les Catégories

Excavatrice Final Drive

Excavatrice Swing Drive

Excavatrice Travel Gearbox

Excavatrice Swing Gearbox

Excavatrice Travel Motor

Excavatrice Swing Motor

Excavatrice Final Drive Parts

Excavatrice Gear

Excavatrice Seal Kit

Excavatrice Bearing

Excavatrice Hydraulic Pump

Pièces hydrauliques de moteur
TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404
  • Nom
  • Nom
  • Nom
  • Nom
  • Nom

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404

Nom De La Marque: TGFQ
Numéro De Modèle: MAG340VP
MOQ: 1
Prix: 1475.00USD
Détails De L'emballage: EMBALLAGE DE NNER : Enveloppe par la feuille de plastique, label clair pour chaque article. EMBALLAG
Conditions De Paiement: L / c, t / t, d / p, d / a
Informations détaillées
Description du produit
Informations détaillées
Lieu d'origine:
Chine
Capacité d'approvisionnement:
50 PCS/mois
Mettre en évidence:

Excavator travel motor EC700C

,

Excavator travel motor EC750D

,

Travel motor VOE14522564

Description du produit
EC700C Track Motor

TRACK MOTOR EC700C VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404

Safety Features
Reverse Prevention System

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

  • One-way valve design ensures hydraulic oil flows in only one direction
  • Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications
Compatible Models EC700C/EC750D
Category Excavator Swing Hydraulic Motor
Brand TGFQ
Part Numbers VOE14522564/VOE9014522564
Packing Wooden case
Delivery Time 1-3 days after payment confirmation
Shipping Methods By Sea, Air, or Express
Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Travel Drive Brake Operation

The travel brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.

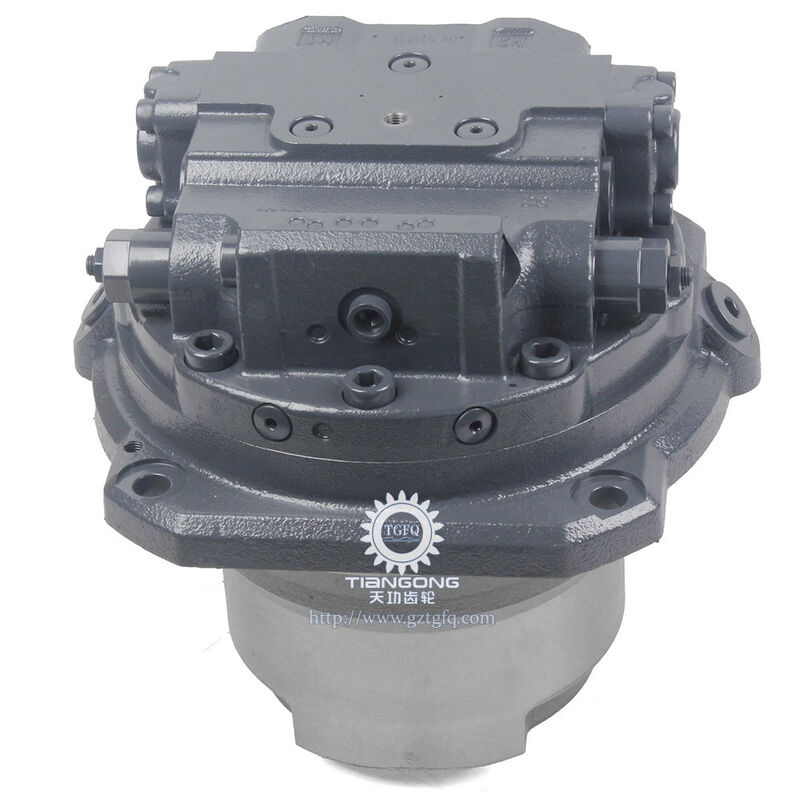

Product Images

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 0

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 1

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 2

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 3

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 4

Travel Motor Parts Breakdown
TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 5
Parts List - Assembly 1
Item Part Number Part Name Quantity

VOE14522564
VOE9014522564		 1 Travel motor
1 VOE14534991 1 •Case
2
1 •Plate
3 SA8230-34150 2 ••Seat
4 VOE14534995 2 ••Spring
5 VOE14534996 2 ••Seat
6 VOE14534997 2 ••Cap
7 VOE14534998 2 ••Relief valve
8 SA8230-32630 2 ••O-ring
9 SA8230-32380 2 ••Valve
10 VOE983494 2 ••O-ring
11 VOE14534999 3 •••Valve
12 SA8230-33400 2 ••Spring
13 SA8230-34050 2 ••Plug
14 VOE990557 2 ••O-ring
15 SA8230-33430 2 ••Guide
16 SA8230-33940 2 ••Plug
17 VOE14535000 2 ••Non-return valve
18 VOE14535001 2 ••Spring
19 VOE14535002 2 ••Plug
20 VOE983527 2 ••O-ring
21 VOE14535003 2 ••Valve
22 VOE14539093 1 ••Valve
23 SA8230-32350 2 ••Plug
24 VOE983502 6 ••O-ring
25 SA8230-32690 2 ••Plug
26 SA8230-33390 2 ••Plug
27 VOE14535005 1 •Shaft
28 VOE14535006 1 •Block
29 VOE14535007 1 •Plate
30 VOE14535008 9 •Piston
31 VOE14535009 1 •Plate
32 VOE14535010 1 •Holder
33 VOE14535011 1 •Plate
34 VOE14535012 2 •Ball
35 VOE14535013 2 •Piston
36 VOE14535014 2 •Spring
37 VOE14535015 1 •Roller bearing
38 VOE14535016 1 •Roller bearing
39 VOE14535017 1 •Collar
40 VOE14535018 1 •Pin
41 VOE14535019 9 •Spring
42 VOE14535020 2 •Plate
43 VOE14535021 4 •Plate
44 VOE14535022 3 •Plate
45 VOE14535023 1 •Piston
46 SA8230-34070 1 •O-ring
47 VOE14535024 1 •Ring
48 VOE14535025 1 •O-ring
49 VOE14535026 1 •Ring
50 VOE14535027 10 •Spring
51 SA8230-32320 4 •Pin
52 VOE14535028 1 •Seal
53 VOE960262 1 •O-ring
54 VOE983497 1 •O-ring
55 VOE14535029 2 •Plug
56 VOE983524 2 •O-ring
57 VOE14535030 9 •Bolt
58 VOE14535031 2 •Plug
59 VOE14535032 1 •Plate
60
1 •Spool
600 VOE14535034 1 •Block
700 VOE14535035 1 •Plate
800 VOE14535036 1 •Case
900 VOE14539094 1 •Plate
100 VOE14535033 1 •Seal
Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 6 TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 7 TRACK MOTOR EC700C/EC750D VOE14522564/VOE9014522564 TRAVEL MOTOR 8282450,8294403,8294404 8
Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
